460 - brake master cylinder (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	ﾄｷｺ 15/16 ﾅﾌﾞｺ 15/16 ｱﾝﾁｽｷｯﾄﾞ ﾅｼ

Open full screen picture Up to the top

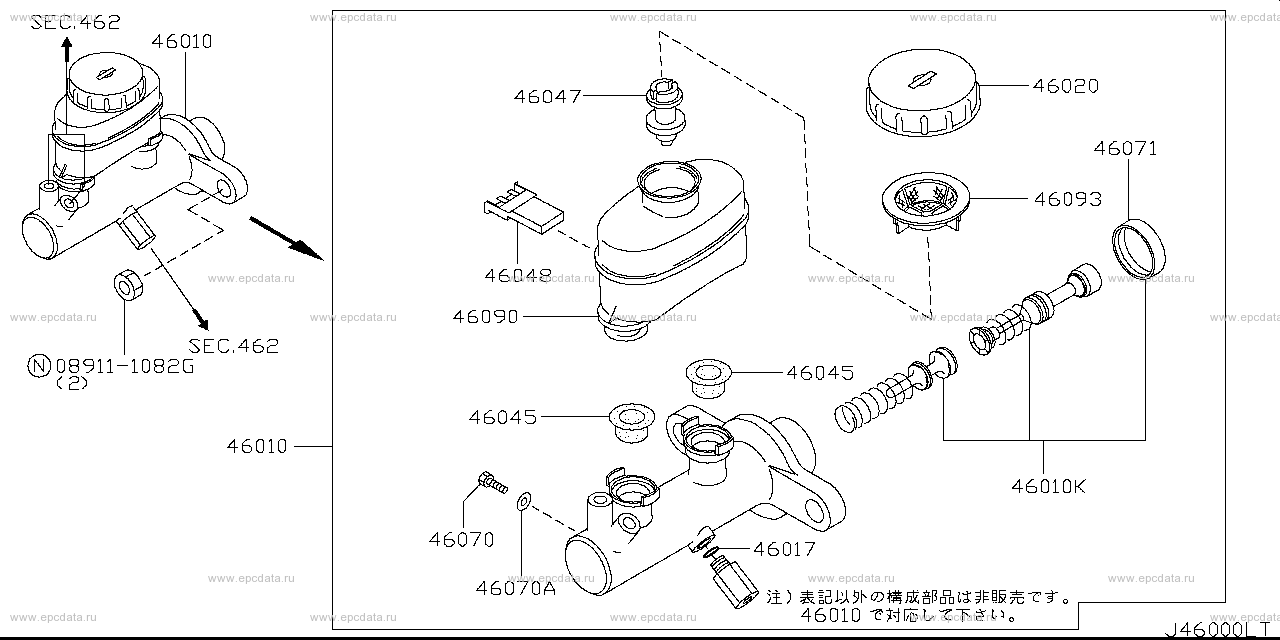

089111082G 46010 - cylinder assembly, brake master 46010K - piston kit, tandem brake master cylinder 46017 - seal,O ring 46020 - cap assembly, oil reservoir tank 46045 - seal, reservoir tank 46047 - float, reservoir tank 46048 - indicator assembly, level 46070 - screw, stopper 46070A - packing, stopper screw 46071 - ring, snap 46090 - tank, oil reservoir 46093 - strainer, brake oil

---

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	アンチスキッド付き
GA16DE +SR20DE +CD20 +CD20ET	01.1997 - 01.1998	アンチスキッド付き

Open full screen picture Up to the top

089111082G 46010 - cylinder assembly, brake master 46010K - piston kit, tandem brake master cylinder 46012A - screw, bleeder 46017 - seal,O ring 46020 - cap assembly, oil reservoir tank 46045 - seal, reservoir tank 46047 - float, reservoir tank 46048 - indicator assembly, level 46070 - screw, stopper 46070A - packing, stopper screw 46071 - ring, snap 46090 - tank, oil reservoir 46093 - strainer, brake oil

---

Applies for models	Manufacture period	Spec
SR20DE +CD20ET	01.1998 - ...

Open full screen picture Up to the top

089111082G 46010 - cylinder assembly, brake master 46010K - piston kit, tandem brake master cylinder 46012A - screw, bleeder 46020 - cap assembly, oil reservoir tank 46045 - seal, reservoir tank 46047 - float, reservoir tank 46048 - indicator assembly, level 46070 - screw, stopper 46070A - packing, stopper screw 46071 - ring, snap 46090 - tank, oil reservoir 46093 - strainer, brake oil

Vanette Serena KVC23
